Membrane Oscillators M1, M2
2 F-OSC, each tuneable over the whole audio range and with adjustable dampening
Envelopes 2 analog envelopes for membranes and noise that are controlled by one parameter (decay)
1_2 Coupl coupling between F-OSCs 1 and 2
2_1 Coupl coupling between F-OSCs 2 and 1, can be phase inverted (+/-)
Noise White Noise, 2x Metal Noise with each 499 different noise pattern combinations, Metal noise II has an adjustable bit mask
Gate T Trigger gate time 0.5ms-10ms, up to 4-times multi trigger possible
LFO 8 wave forms: Saw +/-, Sine +/-, Tri +/-, Rect +/-, modulates the pitch of one or both the F-OSC, starts always syncronous to the note trigger and is pitch envelope at the same time
CV1-CV4 can route the external 0-5V CV signals to any of the above parameters including LFOs
LIN. FM This is a true analog dedicated CV FM modulation input for both F-OSCs. It only works linear-wise and does not offer musical semitones across the CV scale.

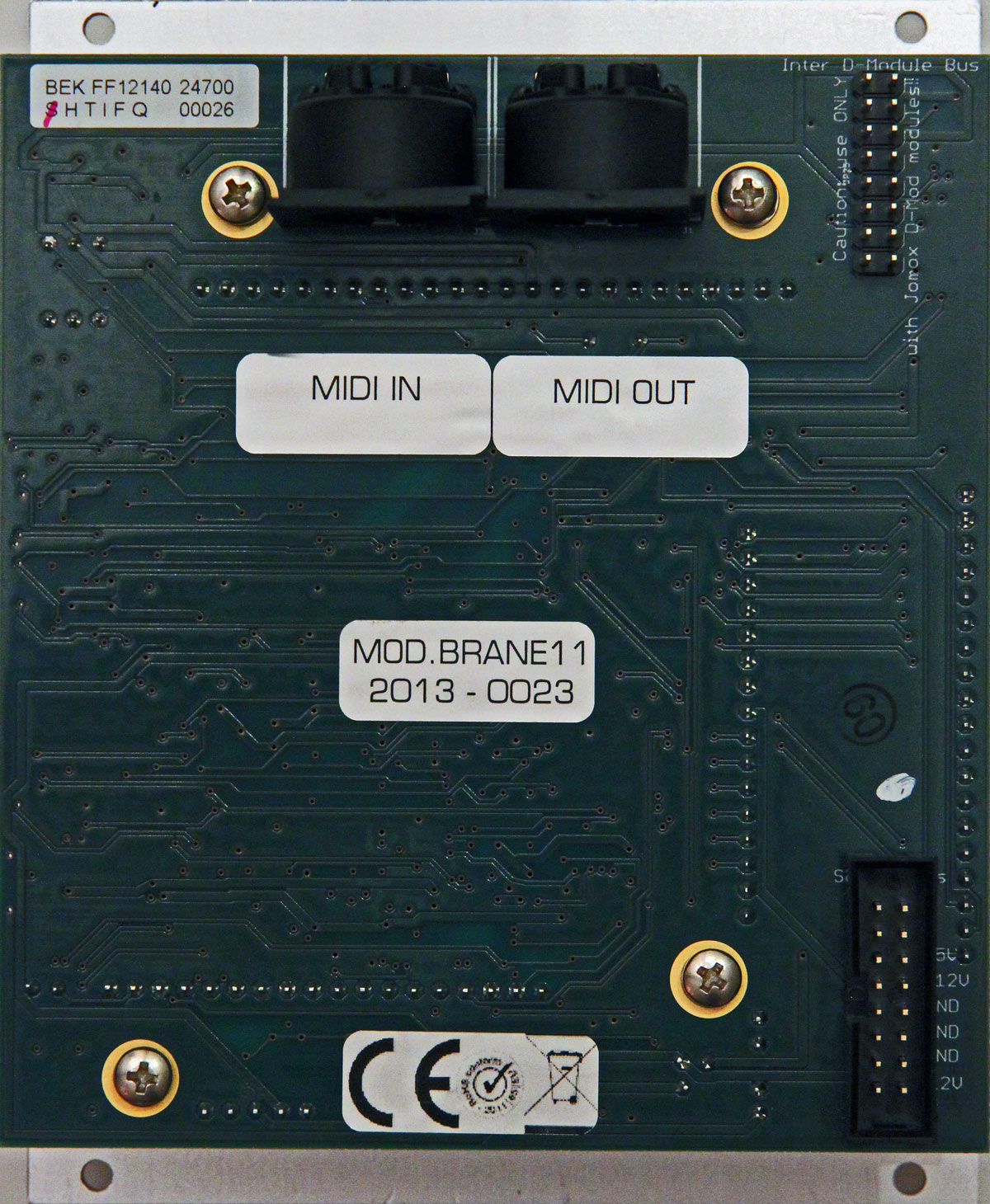

MIDI The midi controllers of this module are identical to the M.Brane 1_1. All parameters including LFO can be remotely controlled by Midi CCs.
Bus Vol Is the programmable level of the audio out signal mixed to the Jomox system bus on the rear. Will work with future master modules.
Bus Send Serves as the programmable FX send to the Jomox system bus on the backside. Will work with future effects modules.

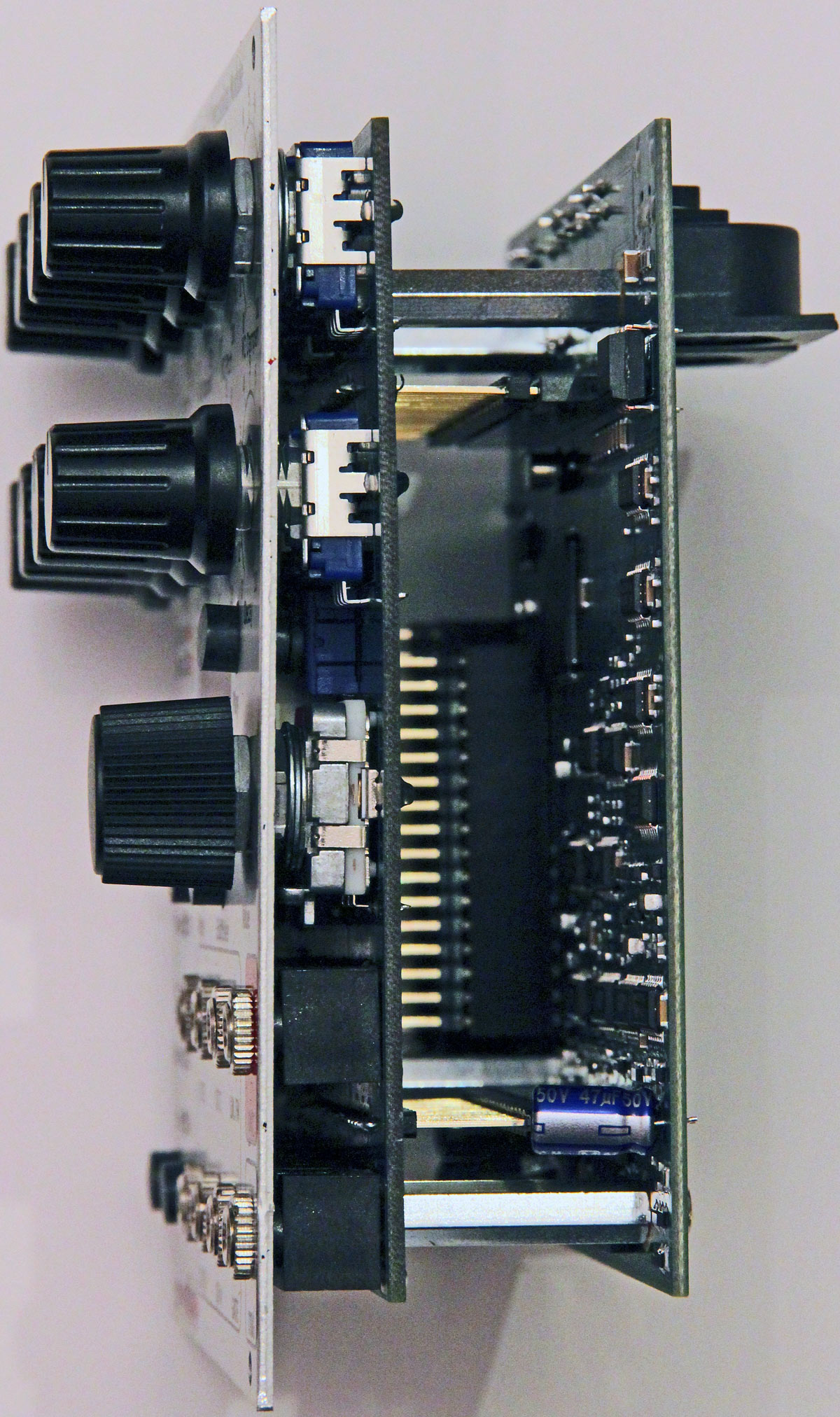

Measures height: 3 RU, size: 20 HP, depth: 53mm
Power usage: ~120-140mA on +12V, ~80mA on -12V
